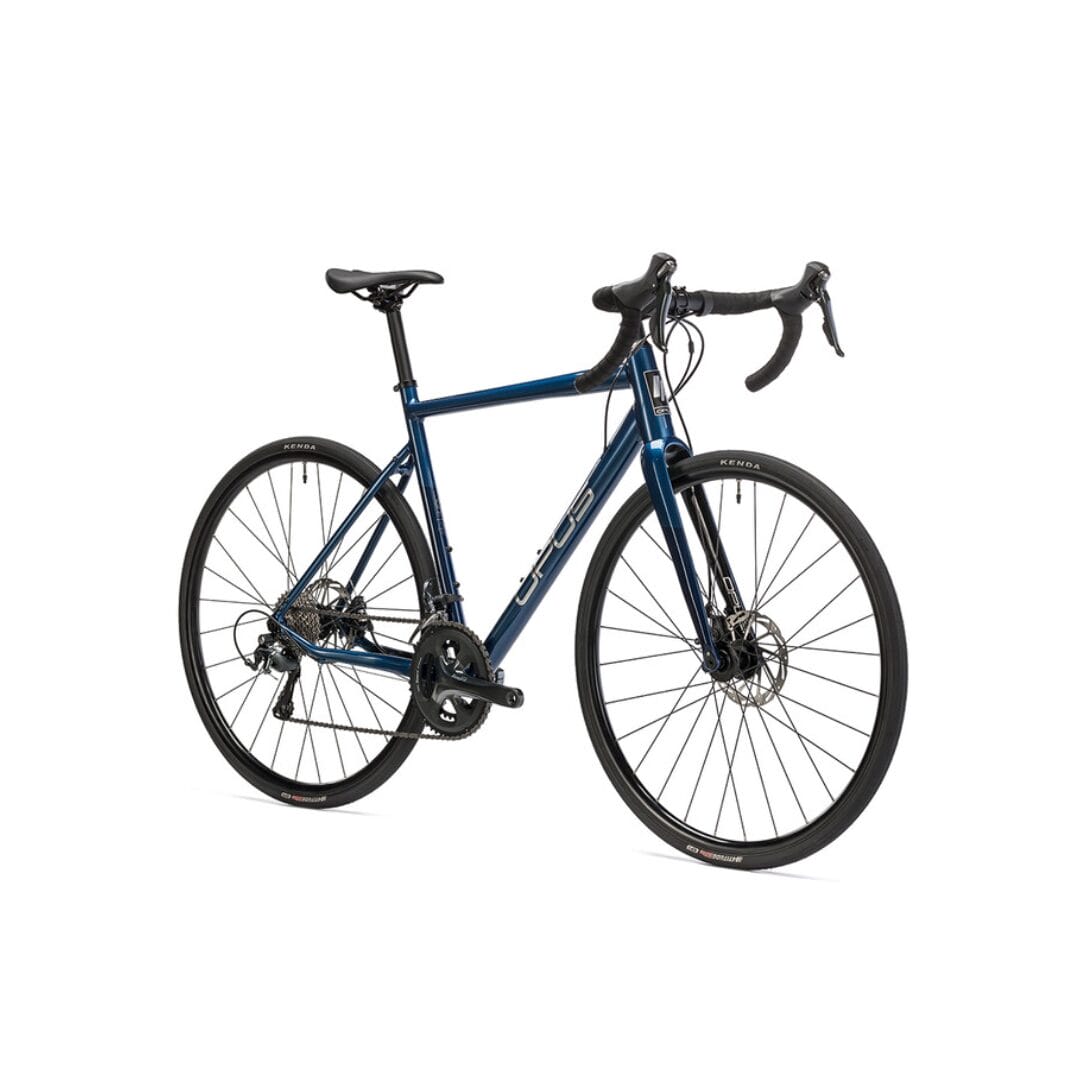

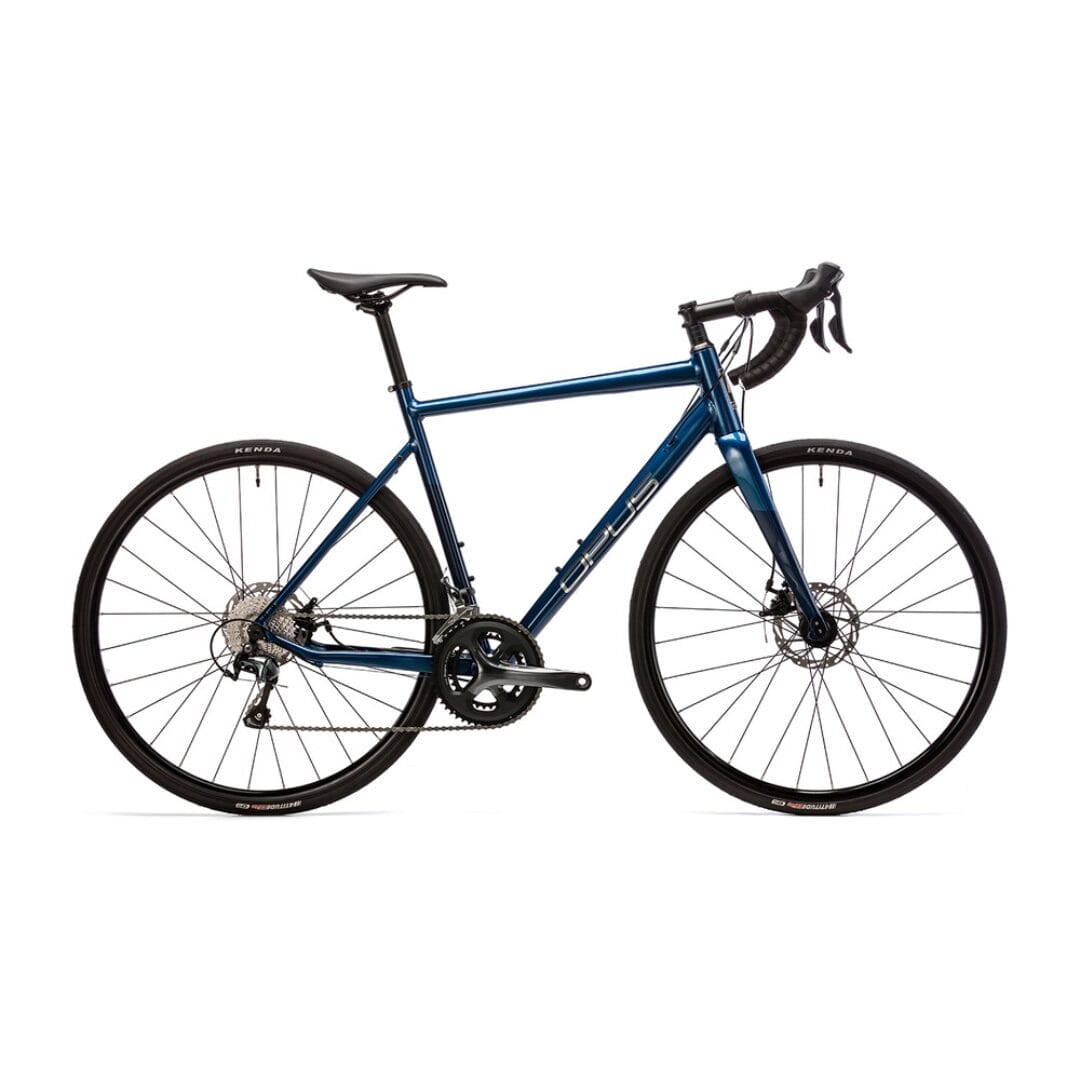

OPUS FORTITUDE TIAGRA
OPUS FORTITUDE TIAGRA - Image 2

OPUS FORTITUDE TIAGRA

$ 1 999.95

- Complete Shimano Tiagra 10-speed group

- Dual piston mechanical disc brakes

- Full carbon fork

- 32mm tires with clearance for up to 35mm

- Ergonomic handlebar

SKU: N/A Categories: ,

Description

Frame Meta 30 6061 Aluminum
Fork Full Carbon Tapered 1-1/2 to 1-1/8 in
Sizes XXS-XS-S-M-L-XL
Shifters Shimano Tiagra 4700 2 x 10
Front Derailleur Shimano Tiagra 4700
Rear Derailleur Shimano Tiagra 4700
Brakes Tektro MDC-550 Flat Mount Twin Piston Disc
Brake Levers Shimano Tiagra 4700
Crank Shimano Tiagra 4700
Chainrings 50-34
Bottom Bracket Shimano sealed cartridge
Cassette Cogs Shimano 11-34
Chain Shimano HG54
Headset FSA Orbit Integrated Sealed
Handlebar X-Race Aero 8° flare
Stem Promax
Grips/Tape Velo VexGel
Saddle Opus Endurance
Seatpost Promax alloy 27.2 x 300
Wheels/Rims Weinmann U27TL
Hubs Alex Bear Pawls through axle 12 mm fr/rr
Tires Kenda Fortitude Elite 700 x 32
Pedals N/A
Other Rear rack and fender mounts

Geometries

SIZE XXS XS S M L XL
SIZE (CM)
RIDER (± 5CM) 5'0" 5'3" 5'6" 5'9" 6'0" 6'3"
RIDER (± 2") 152 160 168 175 183 190
SEAT TUBE 440 480 520 540 560 580
TOP TUBE 507 525 544 564 585 607
HEAD TUBE 100 120 138 157 178 199
HEAD ANGLE 70.5 71.25 72 72.5 72.5 73
SEAT ANGLE 74.5 74 73.5 73 72.5 72
CHAIN STAY 416 416 419 419 422 422
BB DROP 79 76 76 76 76 74
STACK 522 540 560 580 600 620
REACH 362 370 378 387 396 405
STAND OVER 709 736 772 790 810 830
BAR 380 400 420 420 440 460
STEM 70 80 90 100 110 120
CRANK 165 170 172.5 172.5 172.5 175

Additional information

Size

, ,
