OPUS HORIZON QR
OPUS HORIZON QR - Image 2
OPUS HORIZON QR - Image 3

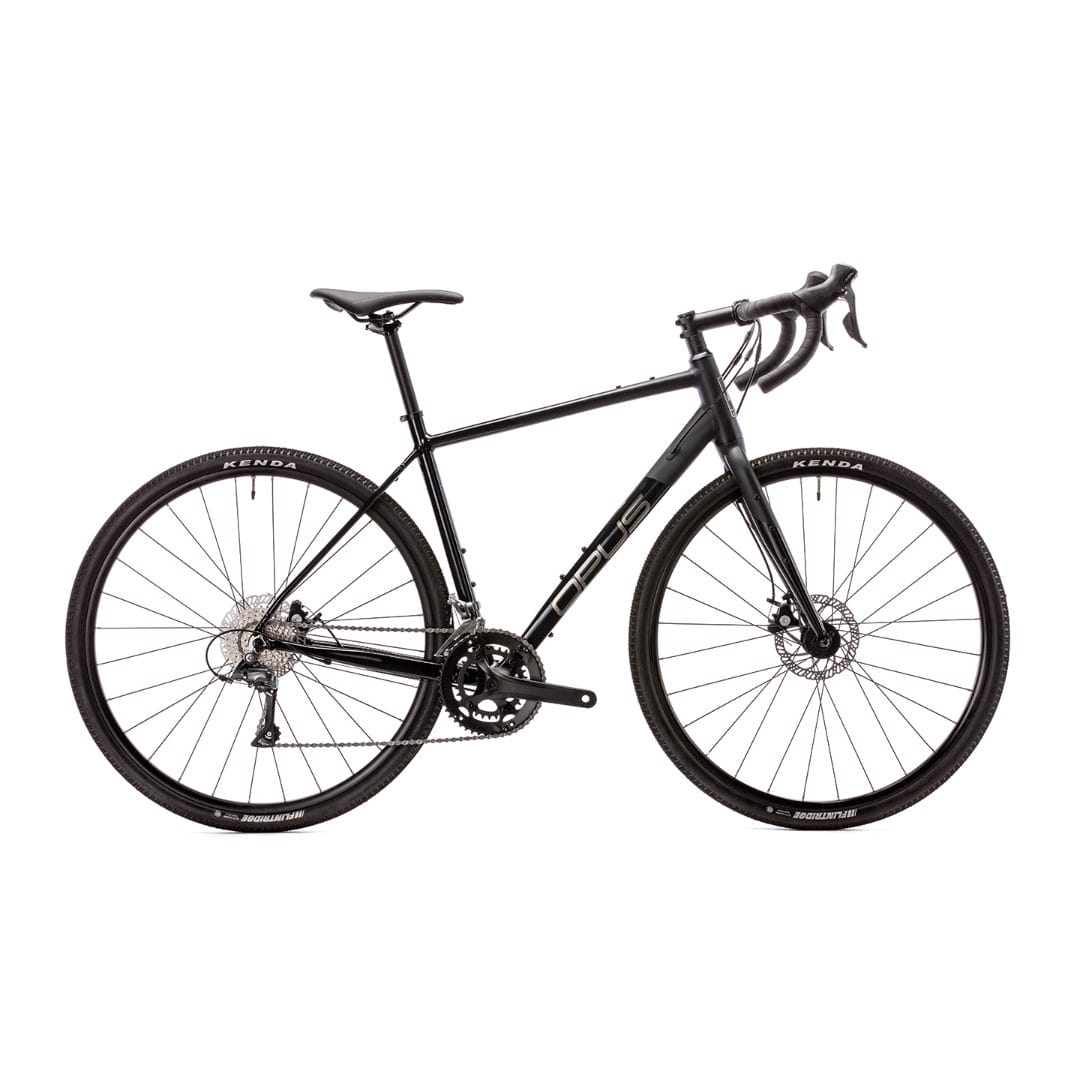

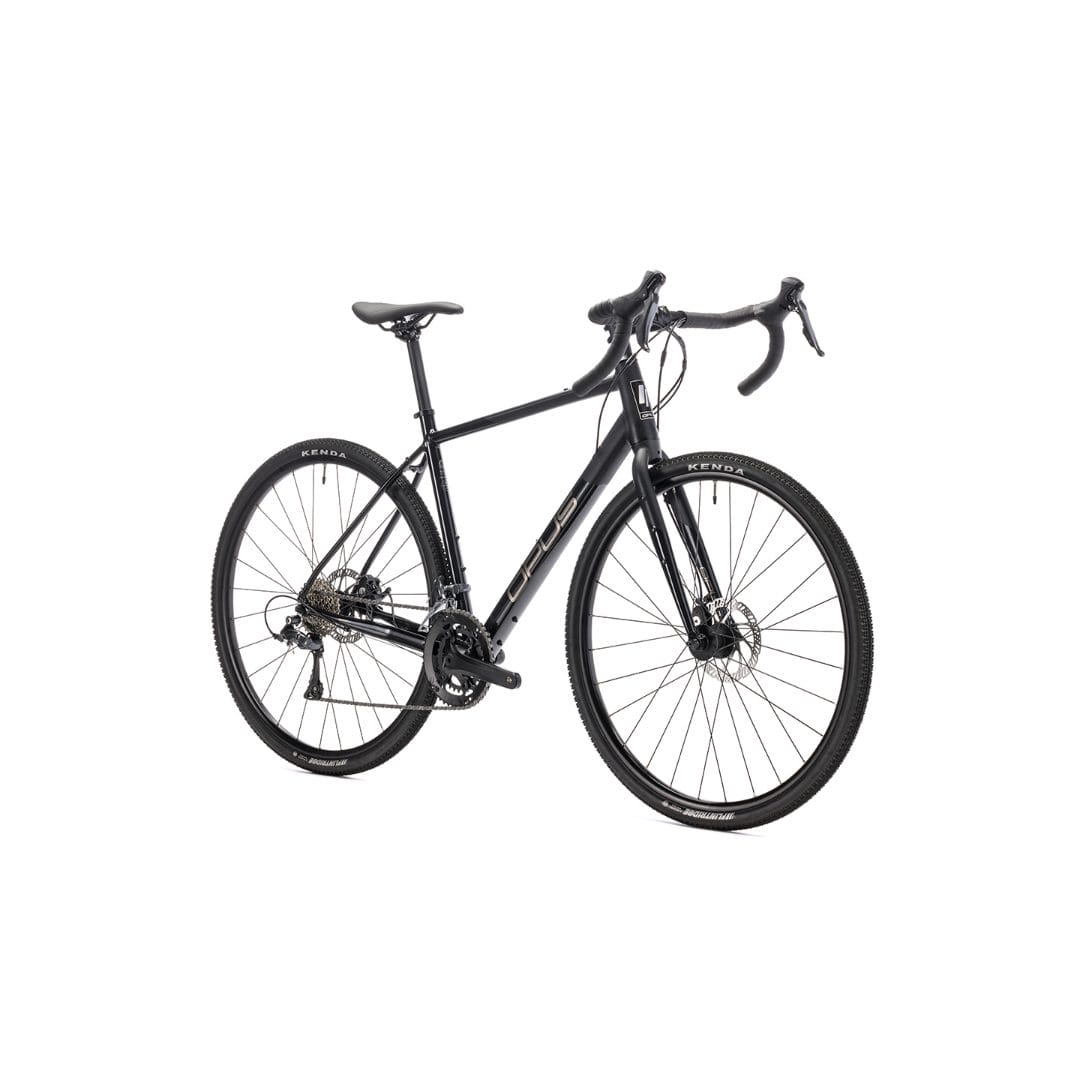

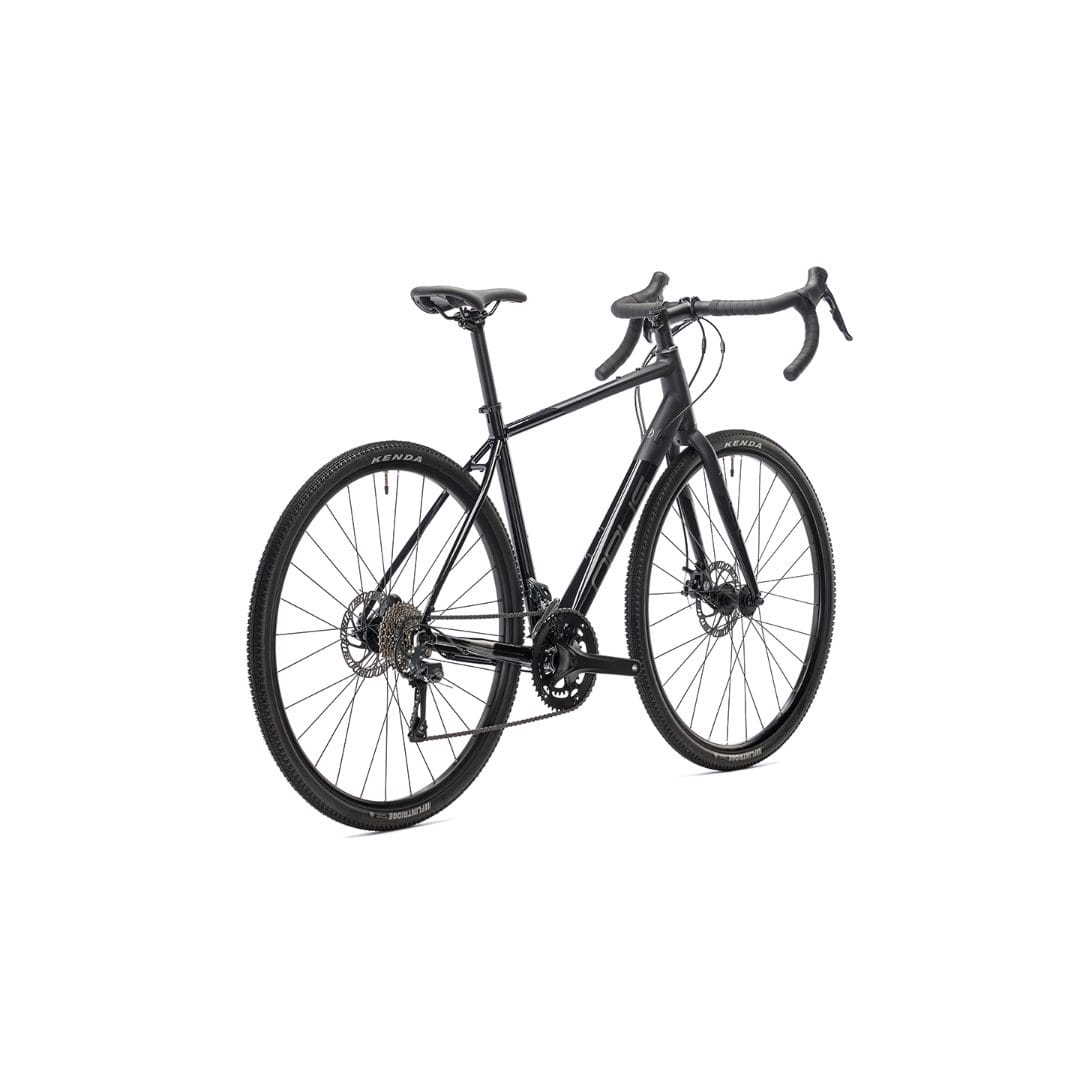

OPUS HORIZON QR

$ 1 399.95

The Horizon AL Claris QR delivers a level of performance and versatility unmatched at this price. From fast road or city commuting to multi-day bike packing expeditions, you decide which road to travel. Or maybe no road at all! The Horizon AL Claris QR. Possibly the only bike you’ll ever need.

- Proven Horizon Progressive Geometry to master all surfaces

- Rugged steel fork with triple mounts for bottle or bags

- 8 Speed Shimano Claris drivetrain with QR wheels

- Big clearance for 700 x 40 tires

- Rear rack and fender mounts, 5 bottle and top tube mounts

SKU: N/A Categories: ,

Description

Frame Meta 30 aluminum
Fork Steel tapered 1-1/2 to 1-1/8 in
Sizes XXS-XS-S-M-L-XL
Shifters Shimano Claris R2000 2 x 8
Front Derailleur Shimano Claris R2000
Rear Derailleur Shimano Claris R2000
Brakes Tektro MD-310 Flat Mount mechanical disc
Brake Levers Shimano
Crank Prowheel RPL-421
Chainrings 48-32
Bottom Bracket sealed BSC threaded
Cassette Cogs Shimano 11-32
Chain KMC Z8.3
Headset FSA Orbit integrated sealed
Handlebar Alloy butted 16° flare
Stem Promax
Grips/Tape Velo VexGel diamond grip
Saddle Opus Endurance
Seatpost Promax alloy 27.2 x 300
Wheels/Rims Weinmann U28
Hubs Alex Bear Pawls QR fr/rr
Tires Kenda Flintridge Sport 700 x 35
Pedals N/A
Other Top tube bag mount
Other Fr/rr rack and fender mounts

Geometries

SIZE XXS XS S M L XL
SIZE (CM)
RIDER (± 5CM) 155 160 168 175 183 190
RIDER (± 2") 5'1" 5’3” 5'6" 5’9” 6’0” 6'3"
SEAT TUBE 420 450 480 510 545 580
TOP TUBE 515 530 544 559 578 599
HEAD TUBE 98 118 138 158 178 198
HEAD ANGLE 69.75 70.5 71 71.5 72 72.5
SEAT ANGLE 75 74.5 74 73.5 73 72.5
CHAIN STAY 425 425 427 427 429 429
BB DROP 80 78 76 74 73 72
STACK 534 553 572 590 610 630
REACH 372 376 380 384 392 400
STAND OVER 718 743 766 791 818 847
BAR 380 400 420 420 440 440
STEM 70 80 90 100 110 110
CRANK 165 170 172.5 172.5 172.5 175
